4 dia. x 3/4 inch thick Round Disc Magnets | DZX0C

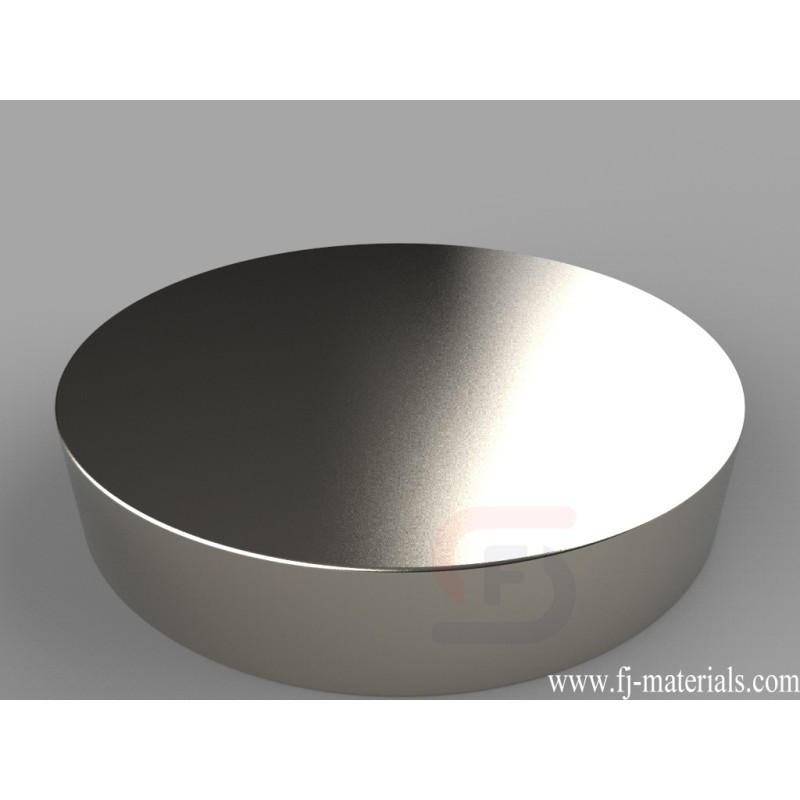

DZX0C Neodymium Magnets, 4 inch dia. x 3/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" dia. x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 268.68 lbs.
DZX0C Neodymium Magnet's dimesion is 4" dia. x 3/4" thick, Ni-Cu-Ni (Nickel) coating. Magnetization direction: Through Thickness
DZX0C Neodymium Magnets, 4 inch dia. x 3/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" dia. x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 268.68 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
DZX0C
Data sheet
- Item Number
- DZX0C
- Material
- NdFeB
- Grade
- N42
- Size
- 4" dia. x 3/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 1158.3333 g
- Pull Force
- 268.68 lbs
- Diameter
- H. 50.8-254mm
- Thickness
- E. 12.7-19.05mm
DZX0C Neodymium Magnets, 4 inch dia. x 3/4 inch thick is made of Grade N42 NdFeB, Nickel Plated. The dimension is 4" dia. x 3/4" thick, Thru Thickness magnetized. Pull force is approximately 268.68 lbs.
