35mm dia. x 5mm thick Round Disc Magnets | D35x5mm

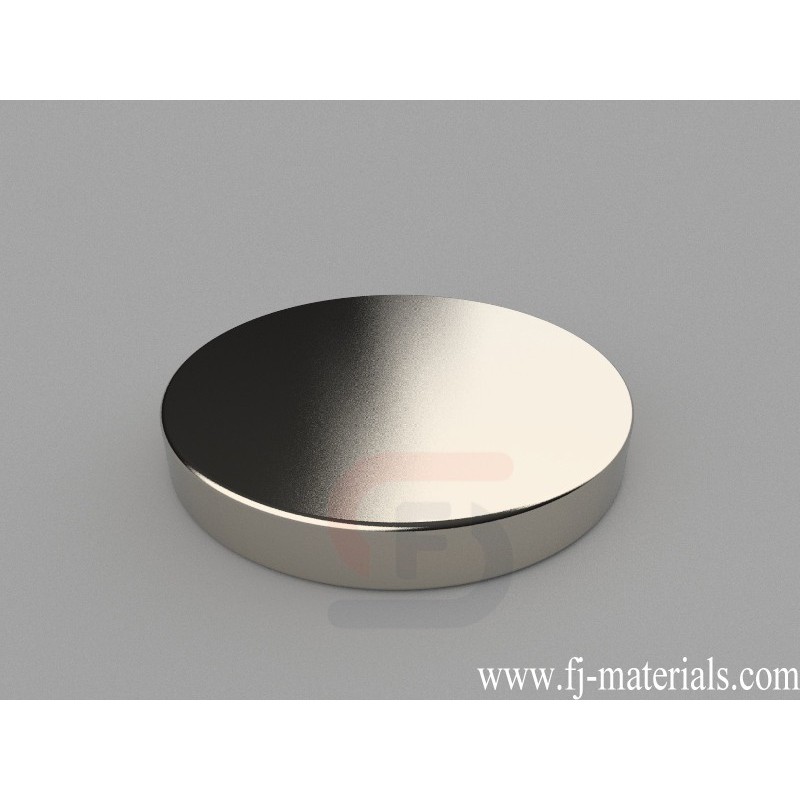

D35x5mm Neodymium Magnet, 35 x 5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 35mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 24.29 lbs (11.04kg).
D35x5mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 35mm dia. x 5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 24.29 lbs (11.04kg). Magnetization direction: Axial (Poles on Flat Ends)
D35x5mm Neodymium Magnet, 35 x 5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 35mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 24.29 lbs (11.04kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D35x5mm
Data sheet
- Item Number
- D35x5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 35mm dia. x 5mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 36.079g
- Pull Force
- 24.29 lbs (11.04kg)
- Diameter
- G. 25.4-50.8mm
- Thickness
- B. 3.18-6.35mm
D35x5mm Neodymium Magnet, 35 x 5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 35mm dia. x 5mm thick, Axial magnetized. Pull force is approximately 24.29 lbs (11.04kg).
