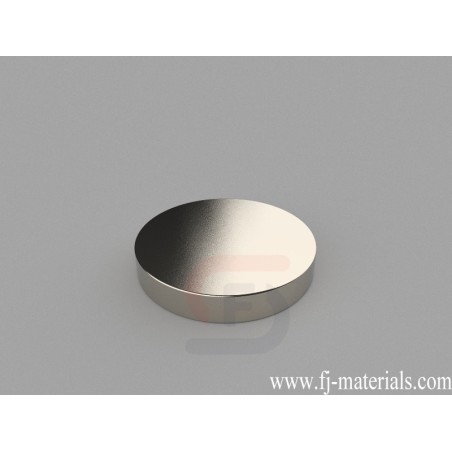

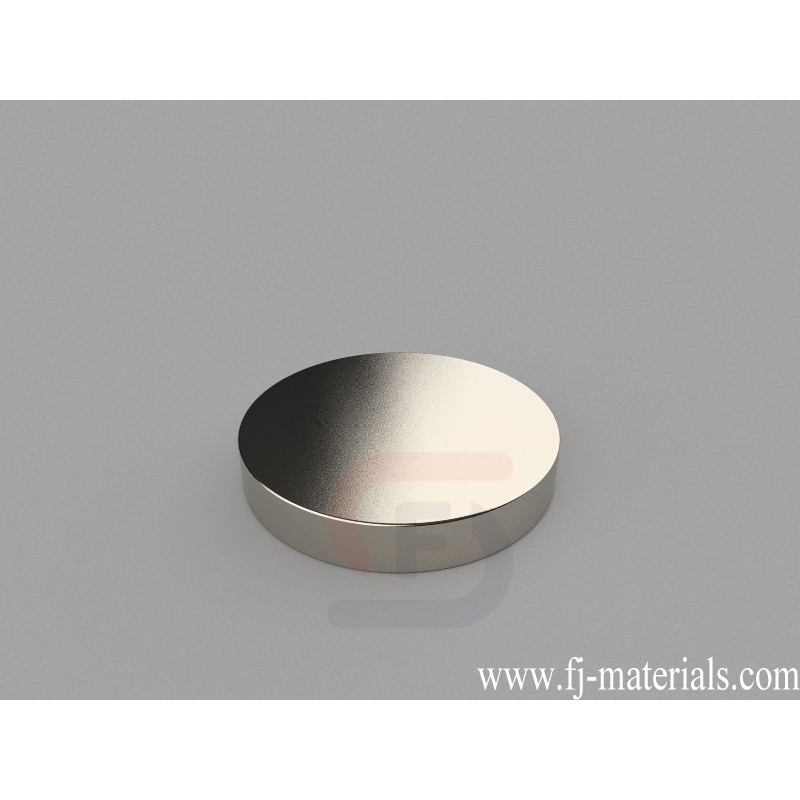

60mm dia. x 10mm thick Round Disc Magnets | D60x10mm
D60x10mm Neodymium Magnet, 60 x 10mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 83.27 lbs (37.85kg).
D60x10mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 60mm dia. x 10mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 83.27 lbs (37.85kg). Magnetization direction: Axial (Poles on Flat Ends)
D60x10mm Neodymium Magnet, 60 x 10mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 83.27 lbs (37.85kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D60x10mm
Data sheet
- Item Number
- D60x10mm
- Material
- NdFeB
- Grade
- N42
- Size
- 60mm dia. x 10mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 212.058g
- Pull Force
- 83.27 lbs (37.85kg)
- Diameter
- H. 50.8-254mm
- Thickness
- D. 9.53-12.7mm
D60x10mm Neodymium Magnet, 60 x 10mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 60mm dia. x 10mm thick, Axial magnetized. Pull force is approximately 83.27 lbs (37.85kg).
