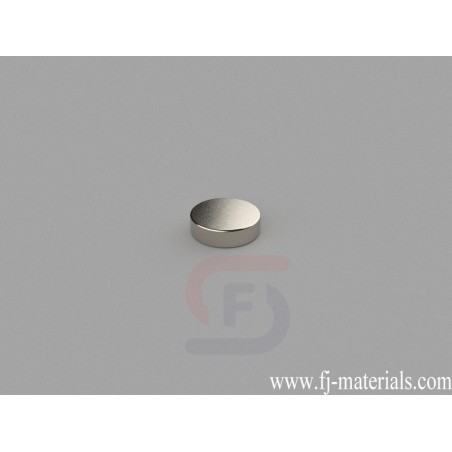

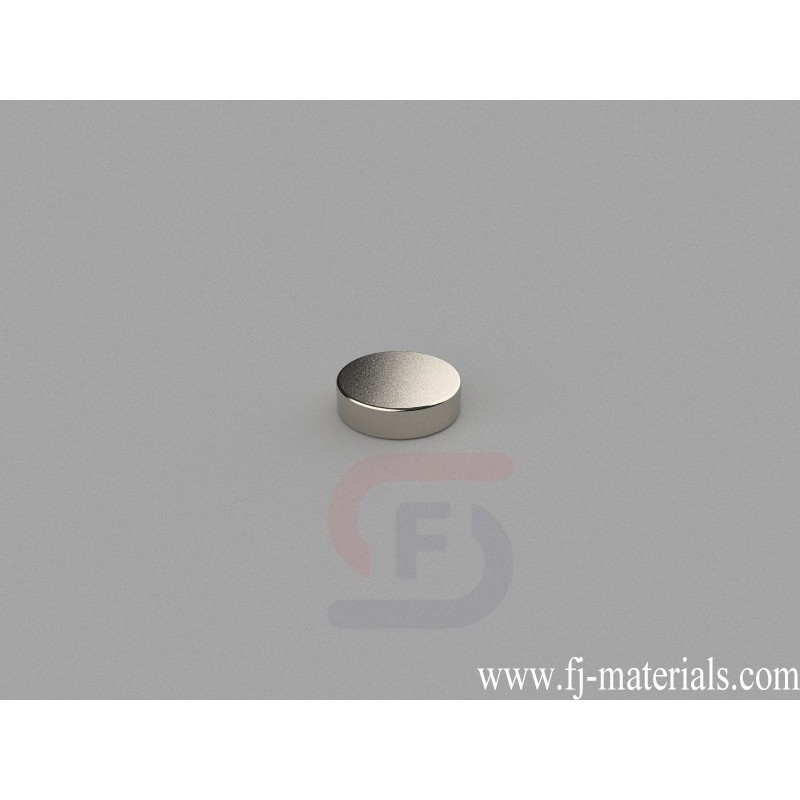

9mm dia. x 2.5mm thick Round Disc Magnets | D9x2.5mm
D9x2.5mm Neodymium Magnet, 9 x 2.5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9mm dia. x 2.5mm thick, Axial magnetized. Pull force is approximately 3.12 lbs (1.42kg).
D9x2.5mm Neodymium Disc Magnets is made from high perfermance N42 NdFeB. The dimesion is 9mm dia. x 2.5mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 3.12 lbs (1.42kg). Magnetization direction: Axial (Poles on Flat Ends)
D9x2.5mm Neodymium Magnet, 9 x 2.5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9mm dia. x 2.5mm thick, Axial magnetized. Pull force is approximately 3.12 lbs (1.42kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D9x2.5mm
Data sheet
- Item Number
- D9x2.5mm
- Material
- NdFeB
- Grade
- N42
- Size
- 9mm dia. x 2.5mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1.193g
- Pull Force
- 3.12 lbs (1.42kg)
- Diameter
- C. 6.35-9.53mm
- Thickness
- A. 0.00-3.18mm
D9x2.5mm Neodymium Magnet, 9 x 2.5mm Disc Magnet is made of Grade N42 NdFeB, Nickel Plated. The dimension is 9mm dia. x 2.5mm thick, Axial magnetized. Pull force is approximately 3.12 lbs (1.42kg).
