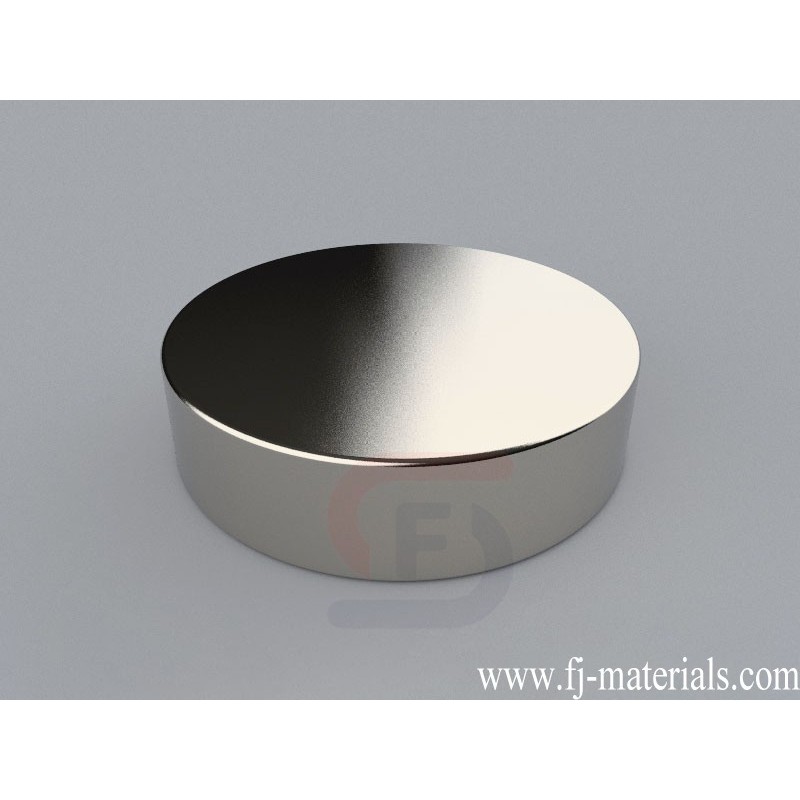

101.6mm dia. x 25.4mm thick Round Disc Magnets | D-D101.6H25.4-N38
D-D101.6H25.4-N38 Neodymium Magnet, 101.6x25.4mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 101.6mm dia. x 25.4mm thick, Axial magnetized. Pull force is approximately 326.34 lbs (148.33kg).
D-D101.6H25.4-N38 Neodymium Disc Magnets is made from high perfermance N38 NdFeB. The dimesion is 101.6mm dia. x 25.4mm thick, Ni-Cu-Ni (Nickel) coating. Pull force: 326.34 lbs (148.33kg). Magnetization direction: Axial (Poles on Flat Ends)
D-D101.6H25.4-N38 Neodymium Magnet, 101.6x25.4mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 101.6mm dia. x 25.4mm thick, Axial magnetized. Pull force is approximately 326.34 lbs (148.33kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
D-D101.6H25.4-N38
Data sheet
- Item Number
- D-D101.6H25.4-N38
- Material
- NdFeB
- Grade
- N38
- Size
- 101.6mm dia. x 25.4mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 1544.444g
- Pull Force
- 326.34 lbs (148.33kg)
- Diameter
- H. 50.8-254mm
- Thickness
- F. 19.05-25.4mm
D-D101.6H25.4-N38 Neodymium Magnet, 101.6x25.4mm Disc Magnet is made of Grade N38 NdFeB, Nickel Plated. The dimension is 101.6mm dia. x 25.4mm thick, Axial magnetized. Pull force is approximately 326.34 lbs (148.33kg).
