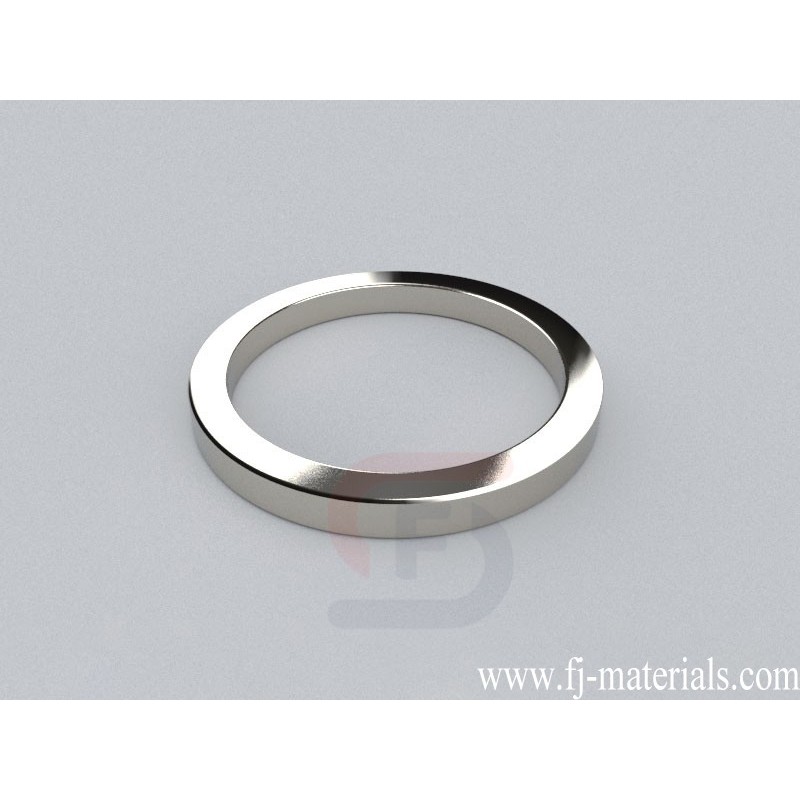

OD99xID81x10mm thick Ring Magnets | R-OD99H10ID81-N35Zn
R-OD99H10ID81-N35Zn Neodymium Magnet, OD99xID81x10mm Ring Magnet is made of Grade N35 NdFeB, Zinc Plated. The dimension is OD99xID81x10mm thick, Thru Thickness magnetized. Pull force is approximately 74.074 lbs (33.67 kg).
R-OD99H10ID81-N35Zn Neodymium Ring Magnets is made from high perfermance N35 NdFeB. The dimesion is OD99xID81x10mm thick, Zinc (Zn) coating. Pull force: 74.074 lbs (33.67 kg). Magnetization direction: Through Thickness
R-OD99H10ID81-N35Zn Neodymium Magnet, OD99xID81x10mm Ring Magnet is made of Grade N35 NdFeB, Zinc Plated. The dimension is OD99xID81x10mm thick, Thru Thickness magnetized. Pull force is approximately 74.074 lbs (33.67 kg).
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
R-OD99H10ID81-N35Zn
Data sheet
- Item Number
- R-OD99H10ID81-N35Zn
- Material
- NdFeB
- Grade
- N35
- Size
- OD99xID81x10mm thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Zinc Plated
- Magnetization Direction
- Thru Thickness
- Weight
- 190.852g
- Pull Force
- 74.074 lbs (33.67 kg)
- Diameter
- H. 50.8-254mm
- Thickness
- D. 9.53-12.7mm
- Inner Diameter
- H. 50.8-254mm
R-OD99H10ID81-N35Zn Neodymium Magnet, OD99xID81x10mm Ring Magnet is made of Grade N35 NdFeB, Zinc Plated. The dimension is OD99xID81x10mm thick, Thru Thickness magnetized. Pull force is approximately 74.074 lbs (33.67 kg).
