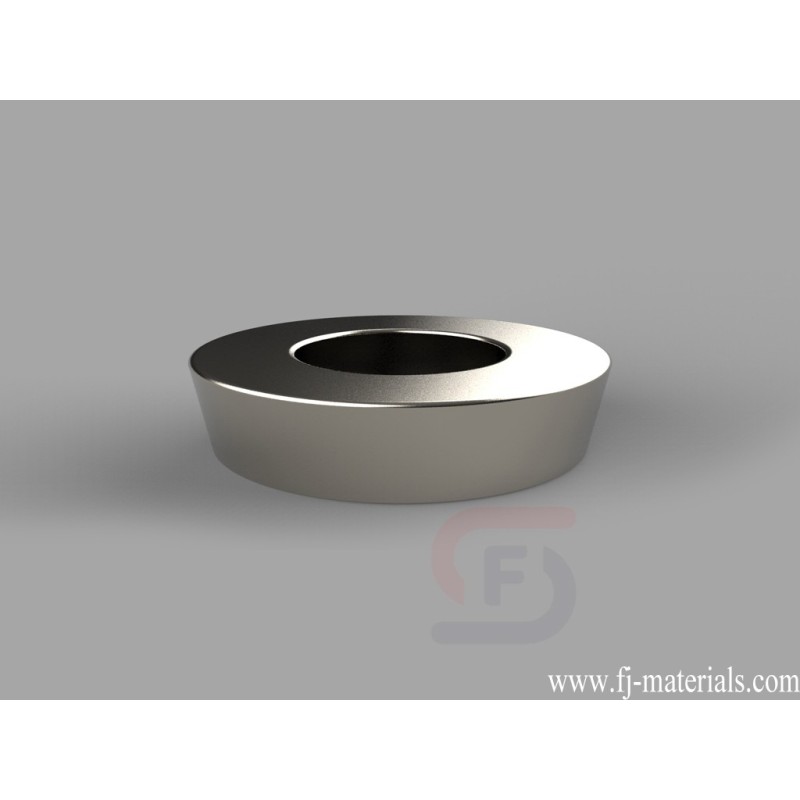

1 od x 1/2 id x 1/4 inch thick Ring Magnets | RX084-N48
RX084-N48 Neodymium Magnets, 1 inch od x 1/2 inch id x 1/4 inch thick is made of Grade N48 NdFeB, Nickel Plated. The dimension is 1" od x 1/2" id x 1/4" thick, Axial magnetized. Pull force is approximately 14 lbs.
RX084-N48 Neodymium Magnets is made from high perfermance N48 NdFeB. The dimesion is 1 inch od x 1/2 inch id x 1/4 inch thick, Ni-Cu-Ni (Nickel) coating. Pull force: 14 lbs. Magnetization direction: Axial (Poles on Flat Ends)
RX084-N48 Neodymium Magnets, 1 inch od x 1/2 inch id x 1/4 inch thick is made of Grade N48 NdFeB, Nickel Plated. The dimension is 1" od x 1/2" id x 1/4" thick, Axial magnetized. Pull force is approximately 14 lbs.
Different grade, coating or magnetization direction can also be custom-made for this size. You can send us your inquiry for a quote. Discount can be applied for bulk quantities.
RX084-N48
Data sheet
- Item Number
- RX084-N48
- Material
- NdFeB
- Grade
- N48
- Size
- 1" od x 1/2" id x 1/4" thick
- Tolerance
- ±0.004"(±0.1mm)
- Coating
- Nickel Plated
- Magnetization Direction
- Axial
- Weight
- 18.100g
- Pull Force
- 14 lbs
- Diameter
- F. 19.05-25.4mm
- Thickness
- B. 3.18-6.35mm
- Inner Diameter
- D. 9.53-12.7mm
RX084-N48 Neodymium Magnets, 1 inch od x 1/2 inch id x 1/4 inch thick is made of Grade N48 NdFeB, Nickel Plated. The dimension is 1" od x 1/2" id x 1/4" thick, Axial magnetized. Pull force is approximately 14 lbs.
